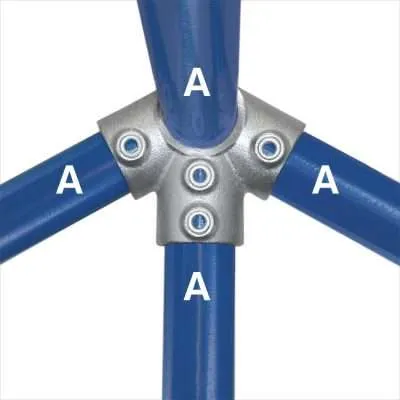

Kee Klamp Type 351 – Klemme for møne
Kee Klamp Type 351 – Klemme for møne er designet for å sette opp mindre bygninger. og den kan bære en høy last. Brukt sammen med type 350 danner disse et bindingsverk med stor styrke. Doble settskruer i det ene uttaket sikrer en solid forbindelse.
TABELL
| Varenummer | Beskrivelse | Vekt | A | D | E | F |
|---|---|---|---|---|---|---|
| 351-8 | Klemme for møne, 48.3 mm | 0.98 kg | 8 | 89 mm | 67 mm | 60 mm |
| Fits Tube Size | Size 8 (48.3mm O/D) |
|---|---|
| Fits Tube O/D | 48.3mm |
| Fits Pipe (Nominal Bore) | 40mm |
| Loads | A Kee Klamp component (size 5 to 9) can support an axial load of 2000 lbs. per set screw with the set screw tightened to a torque of 29 lbs/ft. (rating includes a safety factor of 2:1) |
| Set Screw | Case hardened steel, Kee Koat corrosion resistant coating |
| Manufacturer | Kee Safety |
| Standards | ASTM A47-77-32510, BS EN ISO 1461 |
| Brand | Kee Klamp |
| Has Technical | Yes |
| Sketchup URL | http://cdn.simplifiedbuilding.com/sketchup/351.skp |
| Available For Store Pick-up | Yes |
| Available Online | Yes |
| Financial Classification | Kee Klamp |
| Catalogue Link | /media/wysiwyg/pdf/keeklamp-fittings.pdf |
| Catalogue File Size | 1,313 KB |
